The power of innovation

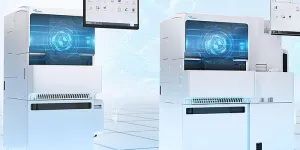

CN-3000 and CN-6000 are extremely fast yet compact, fully automated haemostasis analysers that offer a wide range of assays to be analysed on a single unit, thanks to a variety of measuring principles on board and smart use of reagent table and detector block capacities. To meet individual customers’ automation needs, CN-6000 and CN-3000 can be configured flexibly. The systems offer power in a new dimension for the busy haemostasis lab by a multitude of novel features, creating a refreshing user experience.
The latest members of CN-Series, CN-3500 and CN-6500, are fully automated haemostasis analysers teamed up with a CLEIA (chemiluminescent enzyme immunoassay) unit*, forming an integrated device that runs all your routine and speciality assays out of one sample. The integration of plasma-based immunologic assays into your routine analyser helps you streamline your sodium citrate sample workflow, save space, and simplify the management of your instruments – all this with an equitable investment as you do not need to purchase an additional instrument for the added measurement capability.
Regarding the availability of the products in each country, please approach your local Sysmex representative.
Powerful productivity
Analytical power
Operational power
Powerful services
Technical specifications
Principles/technologies
coagulation function
clotting, chromogenic, latex agglutination immunoassay, and platelet aggregation on all CN-Series models
immunology function*
chemiluminescent enzyme immunoassay (CLEIA) on CN-3500 and CN-6500
Throughput
CN-3000
CN-6000
CN-3500
CN-6500
PT: 225 tests/h; PT/APTT: 215 tests/h
PT: 450 tests/h; PT/APTT: 401 tests/h
PT: 225 tests/h; CLEIA: 26 tests/h
PT: 450 tests/h; CLEIA: 26 tests/h
CLEIA time to first result: approx. 17 minutes (time from sample aspiration to result display)
Parameters
Haemostasis
CLEIA
up to 60 parameters analysed simultaneously
up to 5 parameters analysed simultaneously
Analysis methods
dilution measurement, multi-dilution (MDA), cross-mixing, automated re-measurement (repeat, re-dilution, reflex), clot waveform analysis (CWA), CLEIA method
CLEIA assays
(CN-3500/CN-6500)
a DIC panel of 4 assays (RUO):
thrombin-antithrombin complex (TAT)
tissue plasminogen activator / plasminogen activator inhibitor 1 complex (tPAI • C)
thrombomodulin (TM)
plasmin-α2-plasmin inhibitor complex (PIC)
Light source
LED with multi-wavelength capability
(340 nm, 405 nm, 575 nm, 660 nm, 800 nm)
Pre-analytical checks
HIL check (assay-based), sample volume check
Sampling
cap-piercing functionality, dedicated STAT position
Loading capacity
30 tubes with standard sampler; continuous loading
120 tubes with optional sampler module; continuous loading
Calibration curves
up to 250 assays with 2-12 points/curve
Stored test results
up to 10,000 samples
QC methods
Westgard, Xbar, L-J
40 files with max. 1,200 data points each
Dimensions/weight
(W x H x D [mm/kg])
CN-3000/CN-6000
595* x 1,350 x 906 / 230
*720 mm including cuvette waste box
(main instrument including pneumatic unit and standard sampler, without PC / monitor)
1,060 x 1,350 x 1,030 mm / 330
(main instrument with optional sampler/wagon and cuvette waste box)
CN-3500/CN-6500
1,055 x 1,350 x 906 / 407
(main instrument including pneumatic unit, with standard sampler)
1,385 x 1,350 x 1,030 / 507
(main instrument including pneumatic unit, with optional sampler)
*Depending on territories, CLEIA Haemostasis Sysmex reagents can be for research use only
